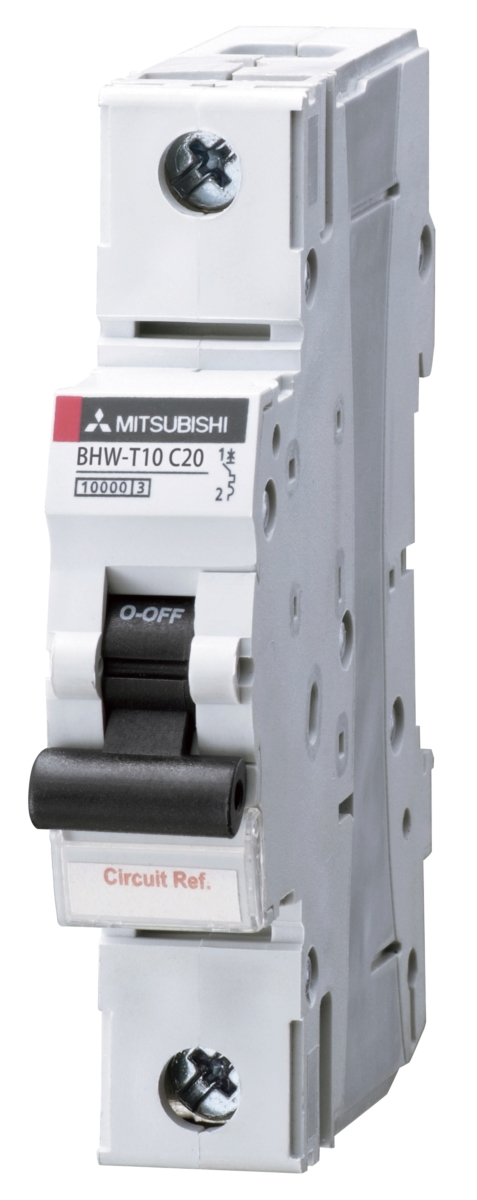

BHW-T10 1P Type C 6A
Product number: MEUL291959
EAN number: 5705379076254
EAN number: 5705379076254
BHW-T10 1P Type C 6A
10 STANDARD ITEM MCB 1-pole, Rated current 6A, Operating characteristic C
Download specifications
| Name | Value |
|---|---|
| BasicData | |
| MaterialDescription | BHW-T10 1P Type C 6A |
| ProductHierachy | IAN10136 |
| ProductSubgroup | BHW-T10 |
| ExternalMaterialGroup | 10 STANDARD ITEM |
| CommodityCode | 85361050 |
| OriginCountry | IN |
| ABCIndicator | A |
| PriceListTextEN | MCB 1-pole, Rated current 6A, Operating characteristic C |
| PriceListTextDE | Sicherungsautomat 1-polig, Nennstrom 6A, Auslöse-Charakteristik C |
| DualUseList | |
| GrossWeight | 0.122 |
| WeightUnit | KG |
| Volume | 0.143 |
| VolumeUnit | CDM |
| BrutLength | 9.5 |
| BrutWidth | 2.0 |
| BrutHeight | 7.5 |
| DimensionUnit | CM |
| DimensionData | |
| NetWidth | 18 |
| NetDepth | 73,5 |
| NetHeight | 92,6 |
| NetWeight | 0,13 |
| EnvironmentData | |
| ReachLimitExceeded | NO |
| ReachSubstanceCASNumber | N/A |
| DangerousGoodsRegulations | NO |
| RoHSCompliance | NO |
| ProductSpecificationCharacteristics | |
| ClassGroup | FA-MCB |
| Class | 100100801 |
| ClassDescription | FA-MCB: Miniature Circuit Breaker |
| MaterialCharacteristics | |
| Type | MCB |
| Rated Current (A) | 6 |
| Rated Voltage (V) | 415 |
| Current Type | AC |
| Number of Poles | 1 |
| Instantaneous Tripping | TYPE C |
| Breaking Capacity at 415V (kA) | 10 |
| Cycles with Rated Current | 4000 |
| Cycles without Rated Current | 4000 |
| Rated Current Sensibility (mA) | N/A |
| Pulsating Current Sensibility | N/A |
