WK4.5T-10-RS4.5T/S2500
Produktnummer:

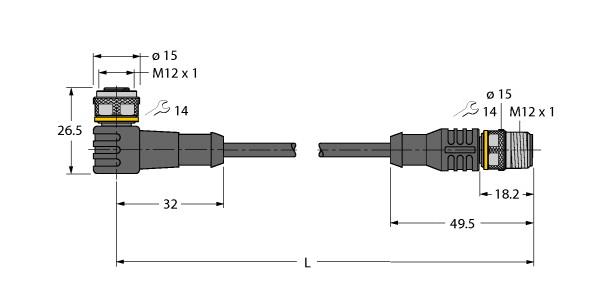

RFID Cable Standard Version, Extension Cable, 4‐core, AWG 24/AWG 22, Jacket material: PUR, color: yellow, Halogen- and LABS-free, Shield: Aluminum foil, tinned copper braid, Jacket diameter: 6.4 mm, Suitable for drag chain use, oil-resistant, highly flexible, Cable UL Style 20963, Cable length: 10 m
Download specifications
| Name | Value |
|---|---|
| Conductor material | - MV |
| Diameter conductor | - MV Millimeter |
| Nominal cross section conductor | - MV Square millimeter |
| AWG-size | - MV |
| Conductor category | - MV |
| Number of cores | - MV |
| Stranding element | - MV |
| Core insulation | - MV |
| Core identification | Colour |
| Screen over stranding element | Other |
| Screen over stranding | Other |
| Material outer sheath | PUR (Polyurethane) |
| Colour outer sheath | Yellow |
| Halogen free (acc. EN 60754-1/2) | Yes |
| Flame retardant | - MV |
| Low smoke (acc. EN 61034-2) | - MV |
| Outer diameter approx. | 6.4 Millimeter |
| Permitted cable outer temperature, in movement | -25, 90 Degrees celsius |
| Permitted cable outer temperature, fixed | -40, 90 Degrees celsius |
| Category | - MV |
| NVP value | - MV Percentage |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047106123291 |
