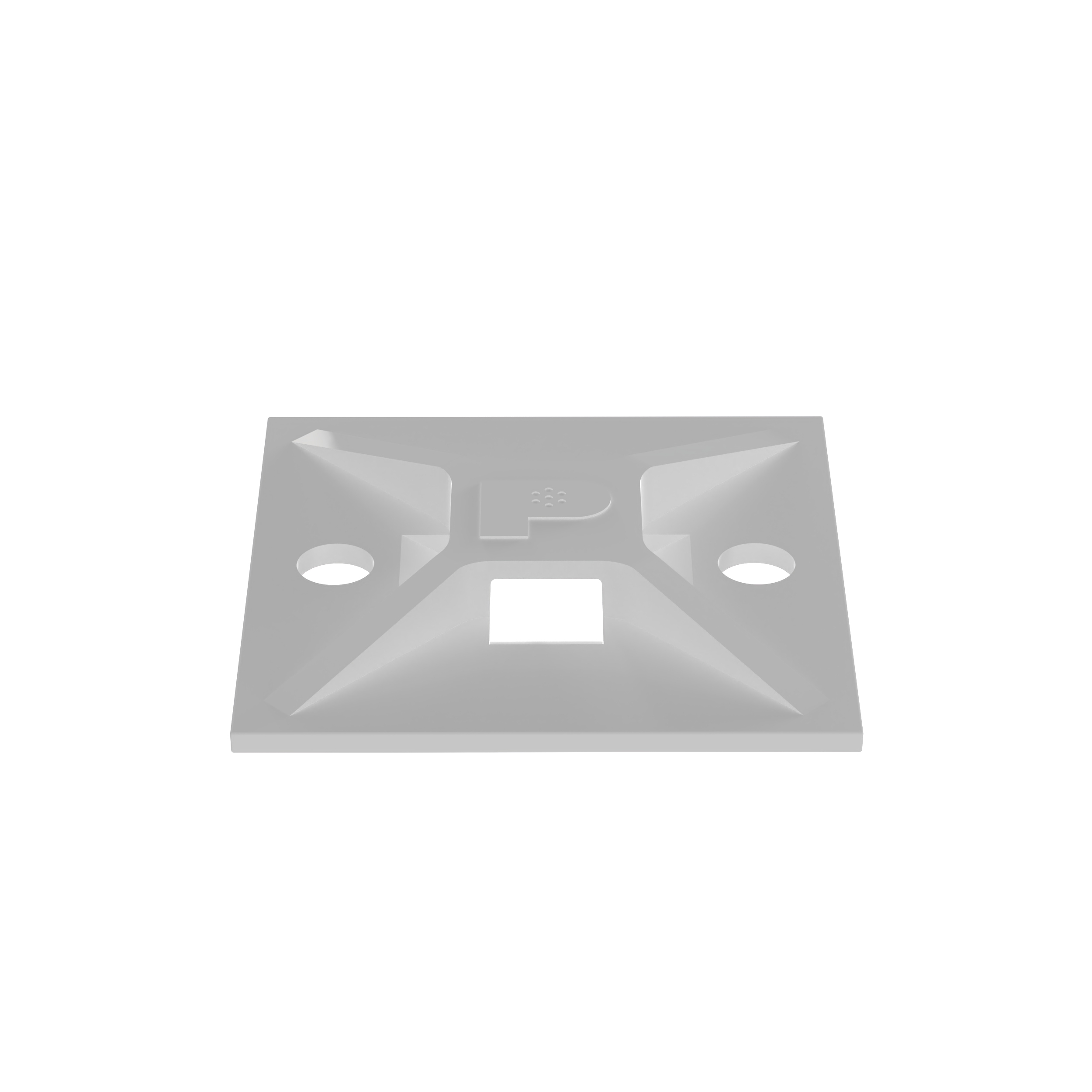

ABM2S-AT-C 4-Way Adhesive Backed Cable Tie Mount
Product number: ABM2S-AT-C
EAN number: 0074983584963
EAN number: 0074983584963
Panduits ABM2S-AT-C 4-way adhesive cable tie mounts are applied with acrylic adhesive tape and made of Nylon 6.6. They have been designed for fast installation and long-term performance and reliability. These mounts can be used with miniature, intermediate, and standard cable ties and are intended for use in indoor, high-temperature environments. The mounts are 1 x 1 (25.4mm x 25.4mm), supplied in strips of 2, are white in color and come in packages of 100.
Download specifications
| Name | Value |
|---|---|
| Type of fastening | Stick and screw |
| Material | Plastic |
| Colour | White |
| Suitable for cable tie width to | 4.8 |
| For max. bundle diameter | 127 |
| Height | 4.2 |
| Working temperature | -29, 70 |
| Length | 25.4 |
| Width | 25.4 |
| Material quality | Other |
| Diameter mounting hole | 4 |
| Customs tarif #: | 39269097 |
| FEATURES: | Harness Auto Barb Insertable Mounting base and element for cable ties |
| UNIT: | Piece |
| GTIN | 74983584963 |
