HT-SKP3-2/S2430
Product number:

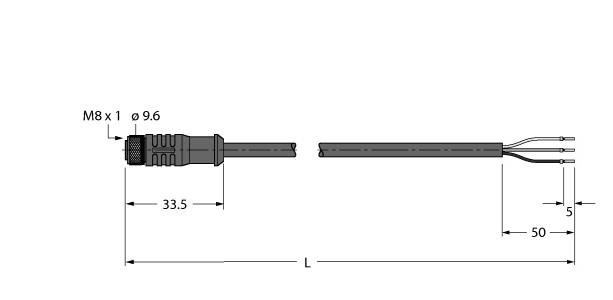

High-Temperature Resistant Actuator and Sensor Cable, Connection Cable, M8 female connector, straight, 3-pin, Cable length: 2.0 m, Sheath material: PTFE, Sheath color: white, Flame-retardant, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Resistant to acids and alkaline solutions, LABS free, Resistant to microbes and hydrolysis, Cold and heat-flexible, RoHS-compliant, Protection class IP65, Temperature range of the cable: -190°C…260°C
Download specifications
| Name | Value |
|---|---|
| Number of poles | 3 |
| Type of electrical connection, field-sided | - MV |
| Type of plug-in contact, field sided | - MV |
| Positioning cable feed, field-sided | - MV |
| Type of electrical connection, box-sided | M8 |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Straight |
| Cable length | 2 Meter |
| Material of cable sheath | Other |
| Halogen free | - MV |
| Colour cable sheath | White White |
| With LED indication | No |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -20, 150 Degrees celsius |
| Permitted cable outer temperature, in movement | - MV Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | 250 Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047106149062 |
