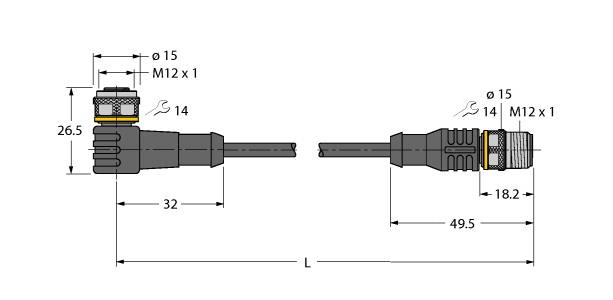

WKC4T-P7X2-4-RSC4T/TXL
Product number:
Actuator and Sensor Cable, PUR, Extension Cable, Female M12, angled, 3-pin, With 2-color LED (PNP, yellow, green), Cable length: 4.0 m, Jacket material: PUR, Jacket color: black, Suitable for drag chain use, Resistant to chemicals, UV radiation and oils, Flame-retardant (FT2 in accordance with UL 1581, IEC 60332-2-2), Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Approval: cULus, RoHS-compliant, Protection class: IP67, IP69K, Male M12, straight, 3-pin
Download specifications
| Name | Value |
|---|---|
| Number of poles | 3 |
| Type of electrical connection, field-sided | M12 |
| Type of plug-in contact, field sided | Male (plug) |
| Positioning cable feed, field-sided | Straight |
| Type of electrical connection, box-sided | M12 |
| Type of plug-in contact, box-sided | Female (bus) |
| Positioning cable feed, box-sided | Angled |
| Cable length | 4 Meter |
| Material of cable sheath | PUR (Polyurethane) |
| Halogen free | - MV |
| Colour cable sheath | Black Black |
| With LED indication | Yes |
| Screened | Yes |
| Type of cable | Multi-core |
| Vulcanize | - MV |
| Material contact body | CuZn |
| Material of contact surface | Au |
| Permitted cable outer temperature, fixed | -50, 80 Degrees celsius |
| Permitted cable outer temperature, in movement | -25, 80 Degrees celsius |
| Rated current In | 4 Ampere |
| Nominal rated voltage | - MV Volt |
| Continuity resistor | - MV Milli-Ohm |
| Customs tarif #: | 85444290900 |
| UNIT: | Piece |
| GTIN | 4047101303391 |
